Apple Patent Details Modular Camera System with Interchangeable Lenses
Apple has filed a patent for a modular electronic device system that would separate the camera from the main smartphone body, potentially allowing for the use of interchangeable lenses and specialised accessories.

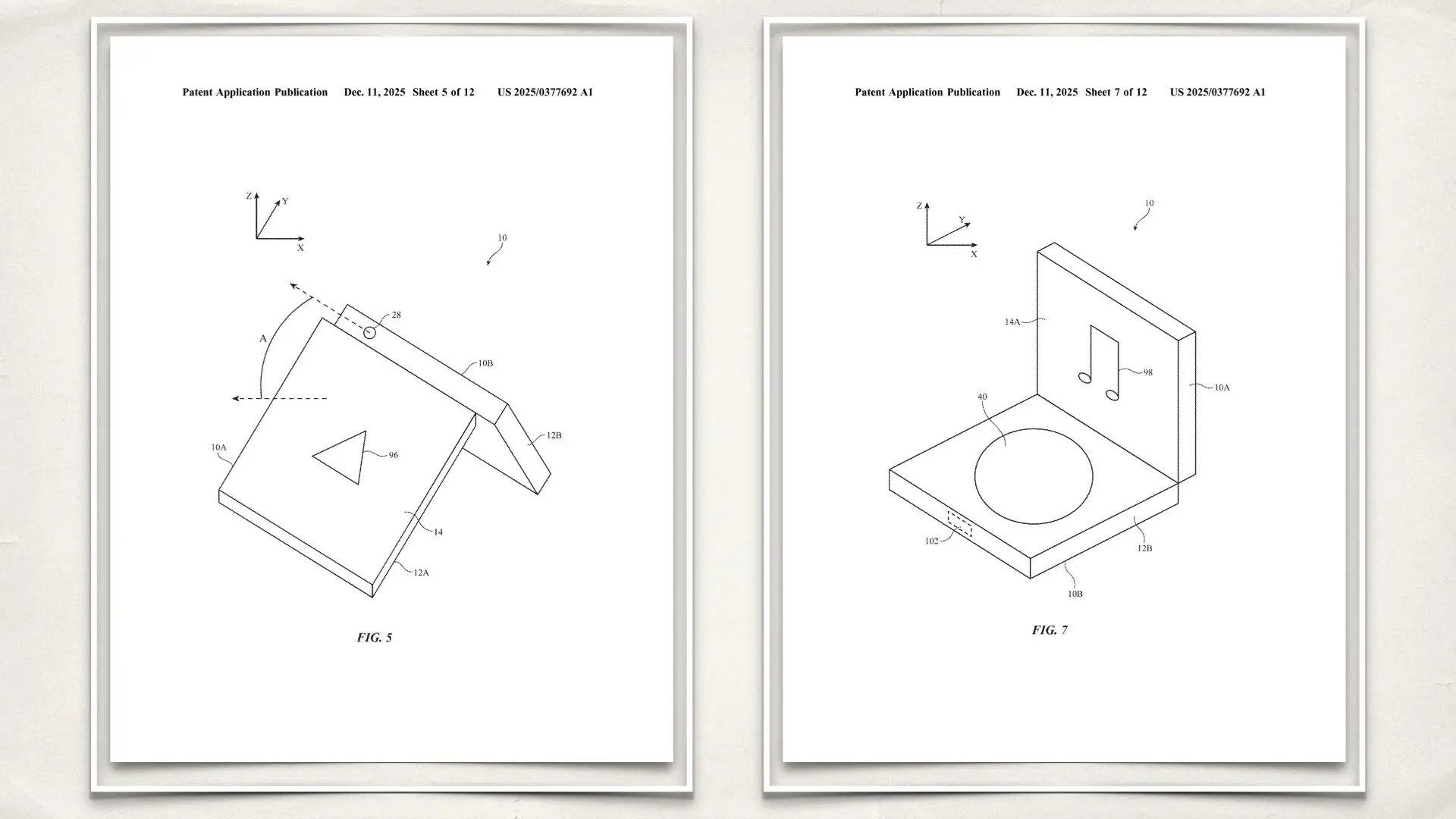

The filing, titled “Foldable Electronic Devices With Modular Components,” describes a design where a core mobile device connects to various functional backplates. This approach addresses physical constraints in current smartphone design, specifically regarding sensor size and optical depth.
Modular Design Concept
The patent outlines a departure from the current unibody smartphone construction. The proposed system consists of two primary components:
- The Core Unit: A slim device housing the display, processor, and battery. The patent notes that this unit could function without a built-in rear camera, allowing for a flush, flat design.
- Attachable Modules: Specialised back components that mechanically lock onto the core unit to provide specific hardware capabilities.
Photography Module Specifications
The most detailed section of the patent focuses on a photography module. Unlike current magnetic accessories, this module is described as a comprehensive imaging system that integrates with the core unit. Features listed in the documentation include:
- Interchangeable Lens Mount: A system for attaching lenses with different focal lengths.
- Hardware Controls: Physical dials and buttons for manual control over exposure, focus, and zoom.
- External Connections: Standard mounting points for tripods and ports for additional media storage.

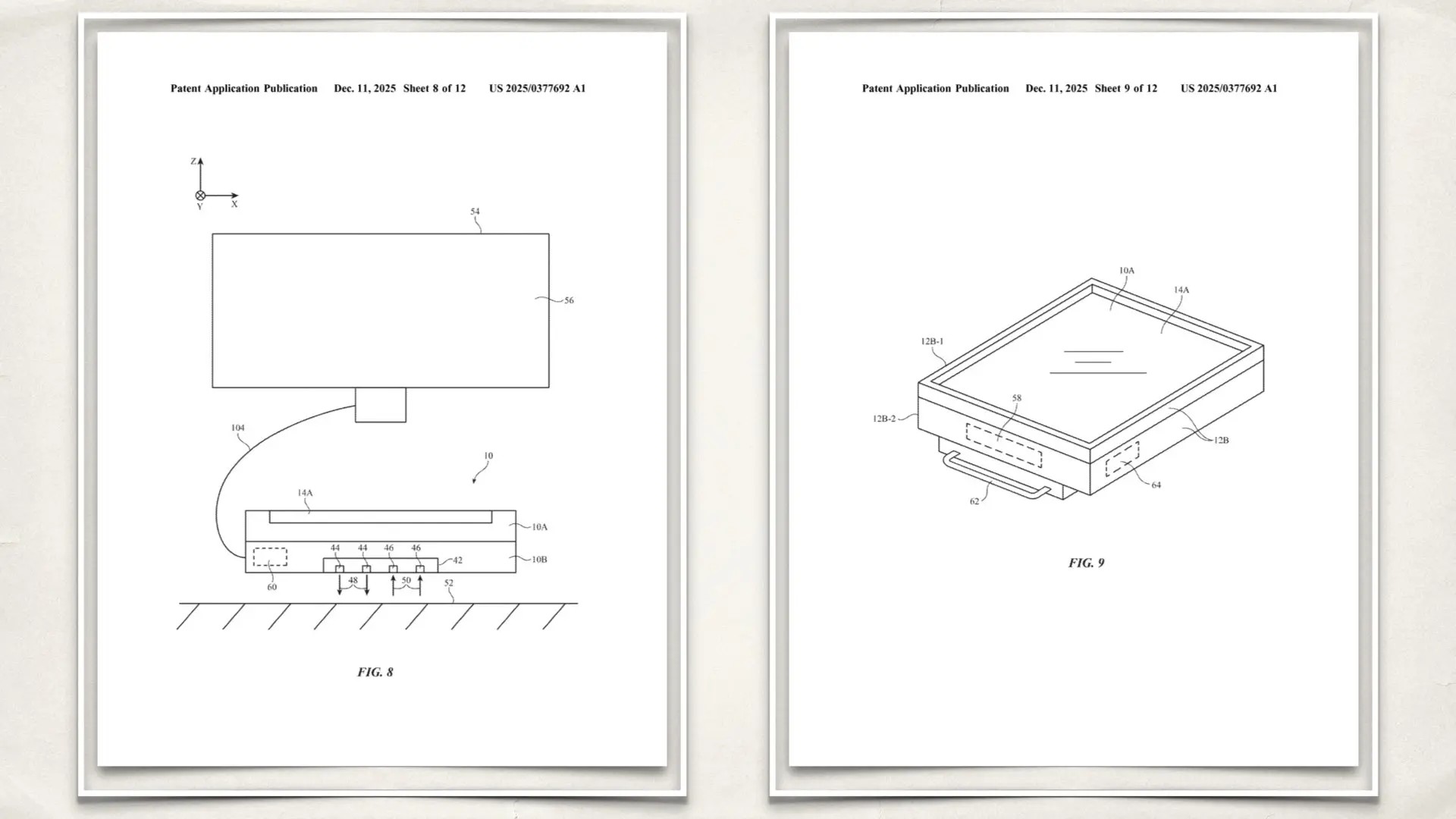

When the photography module is attached, the core unit’s display functions as an electronic viewfinder. The patent describes a hinge mechanism that allows the screen to articulate—tilting and rotating to support various shooting angles, such as low-angle or front-facing recording.
Additional Proposed Modules
Beyond photography, the filing suggests the modular interface could support other hardware expansions:
- Audio Module: Includes larger speaker drivers for improved audio playback.
- Outdoor/Rugged Module: A reinforced shell containing a supplementary battery, GPS hardware, and emergency beacons.
- Computing Module: Hardware designed to facilitate connection to external displays and input devices for desktop-like functionality.
Industry Context
This filing follows a series of recent Apple patents on imaging technology, including documents describing global-shutter sensors and movable-prism stabilisation.

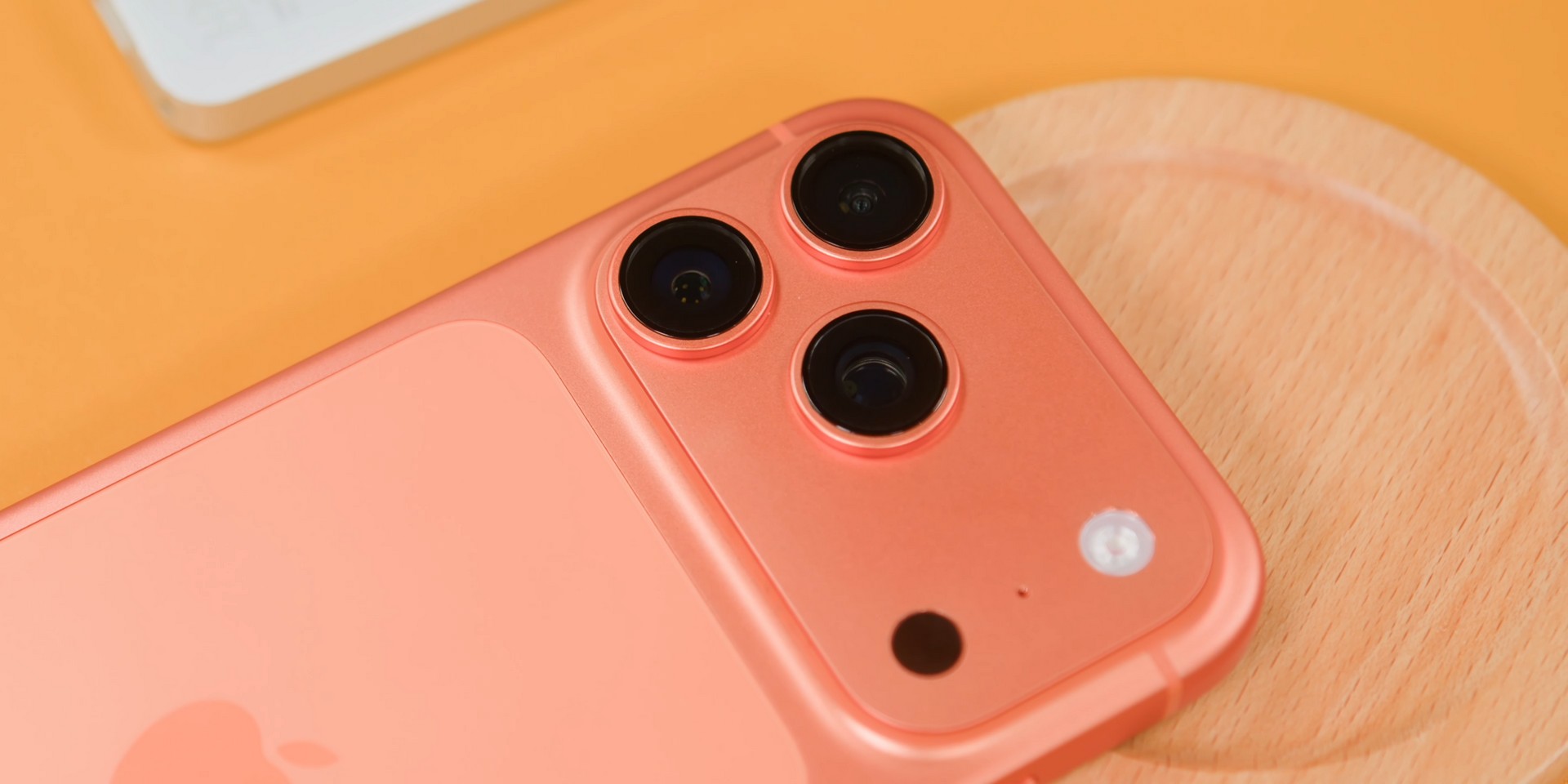

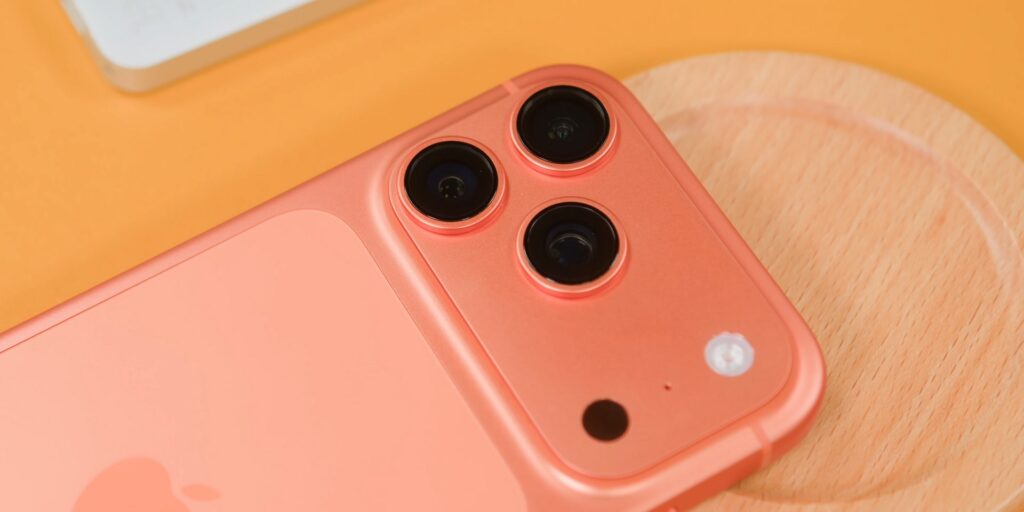

A report by Y.M.Cinema, which initially identified the patent, notes that the design addresses the physical limitations of current mobile photography. As sensors increase in size, they require greater depth, typically resulting in protruding camera bumps. A modular system would allow for larger optical assemblies without permanently increasing the thickness of the handheld device.

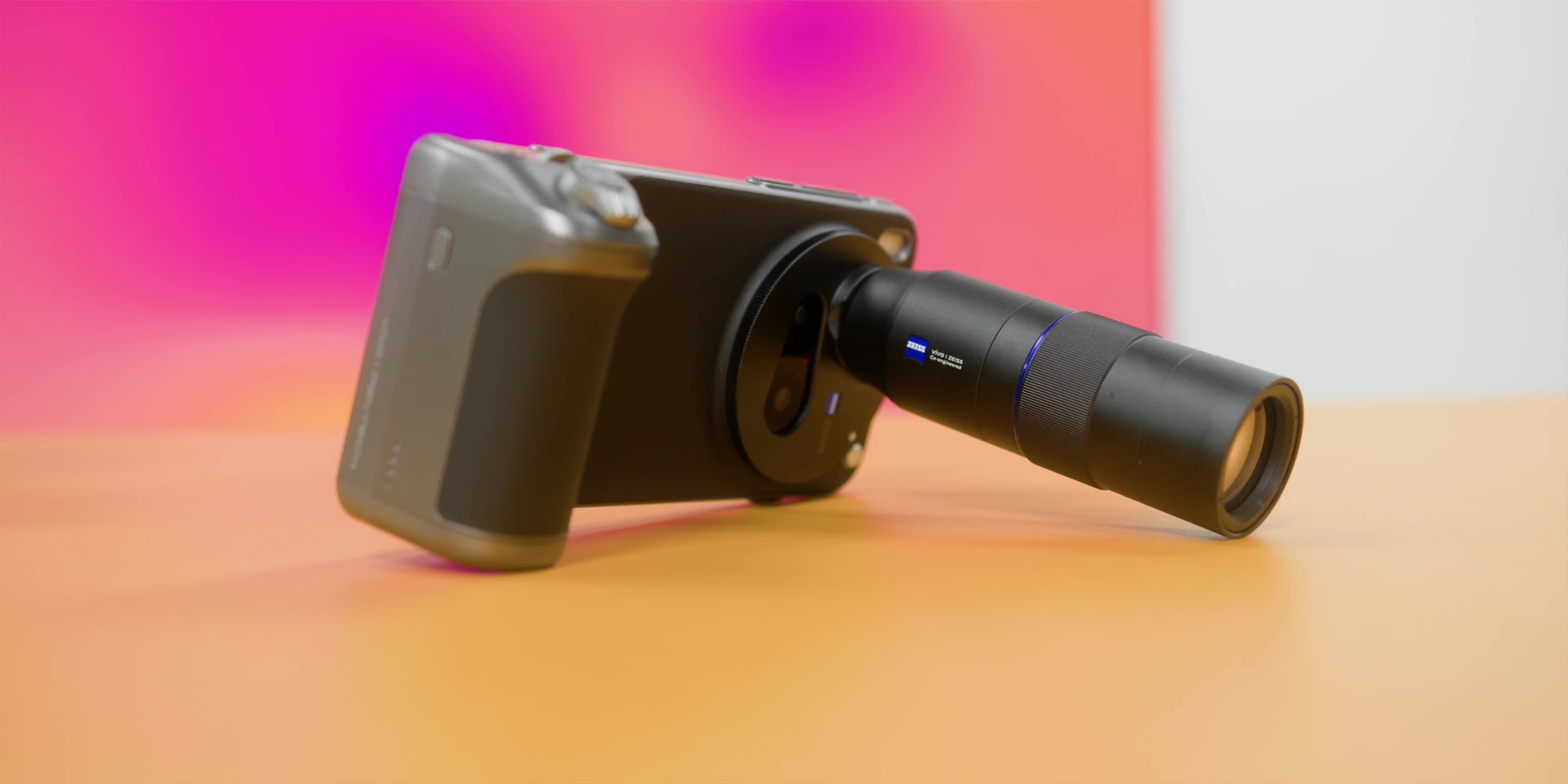

This concept is not too dissimilar to recent interchangeable lens systems and prototypes showcased by brands such as vivo, OPPO, and Xiaomi, albeit implemented here at a seemingly more intricate and integrated level.
As with all patent filings, this document indicates Apple’s research and development interests but does not guarantee the release of a consumer product.
